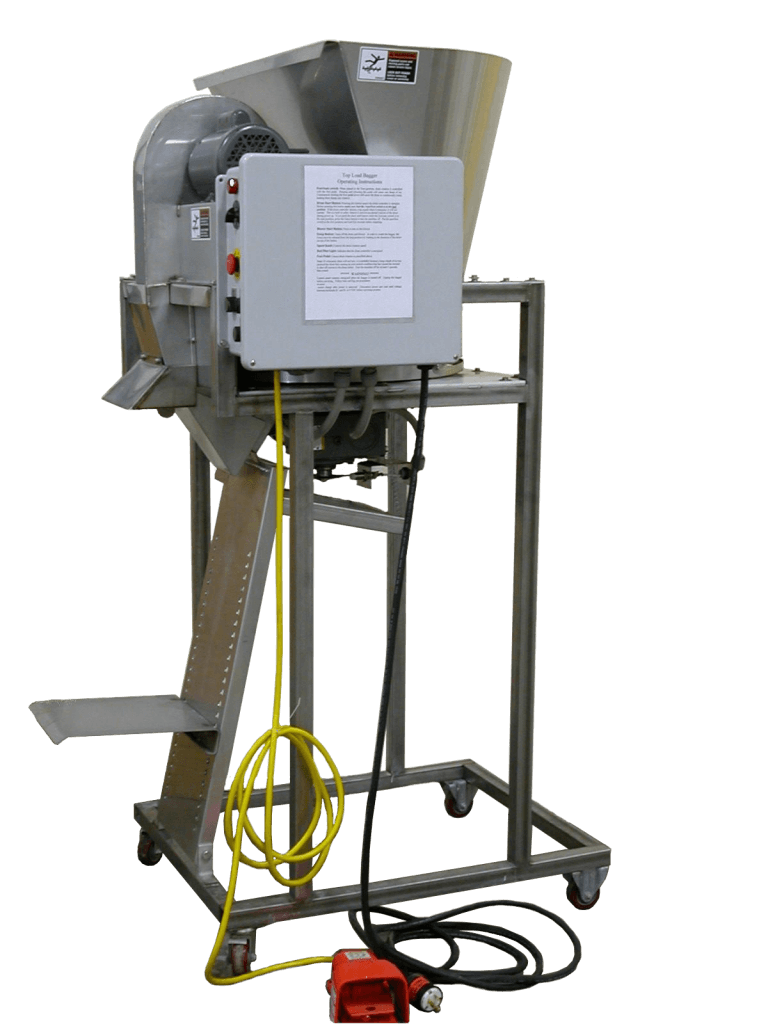

TL510 Ice Bagger

The Ice Max TL510 Ice Bagger is a durable, bottom-load volumetric bagger designed for ease-of-use. Built with a cone-shaped top hopper, this ice bagger accommodates standard wickets and loads one wicket of bags at a time. Its variable frequency drive controls the drum motor speed. The TL510 Ice Bagger fills bags ranging from 5 to 10 pounds in a single dump, and it can also fill larger bags through multiple dumps. There is also an option for a dump selection switch, which allows users to choose the number of dumps with a single activation.

Constructed from stainless steel, with galvanized steel available as an option, the TL510 is built to last. It measures 41″ long by 32″ wide by 78″ high (including casters) and weighs approximately 590 lbs. uncrated, with shipping dimensions of 46″ by 37″ by 80″ and a crated weight of about 720 lbs. The machine comes with UL-approved electrical components, operating on standard 115/1/60 power with a 20-amp load, though other electrical configurations and 50 hertz options are available. Questions about our ice baggers and other products? Contact us online or by phone today.

Description

Bottom load volumetric bagger.
Standard wicket, loads one wicket of bags.
Adjustable speed via Variable Frequency Drive on drum motor.
(No adjustable chains or pulleys to change speed.)

Bag Fill

Will fill from a 5-pound to a 10-pound bag in a single dump.
Multiple dumps will fill larger bags.
Available as option with dump selection switch: select number of dumps with a single activation.

Dimensions

Uncrated: 41″ long x 32″ wide x 78″ high (includes casters)
Uncrated Weight: approximately 590 pounds
Cone shaped top hopper
Crated: 46” long x 37″ wide x 80″ high
Crated Weight: Approximately 720 pounds

Construction

Stainless Steel
Galvanized Is available

Electrical

Standard electrical is115/1/60
Other electrical available – call factory for pricing
50 hertz is an available option with an upcharge
UL approved electrical components

AMP Load

20 Amps at 115/1/60

Options

Slapper – for drum
Wlggler-for hopper
Multi Wicket: either “S” hooks or reverse wicket

Products should be installed in compliance with NEC (National Electric Code), OSHA, and other regulatory agencies. All specifications are subject to change without notice.
