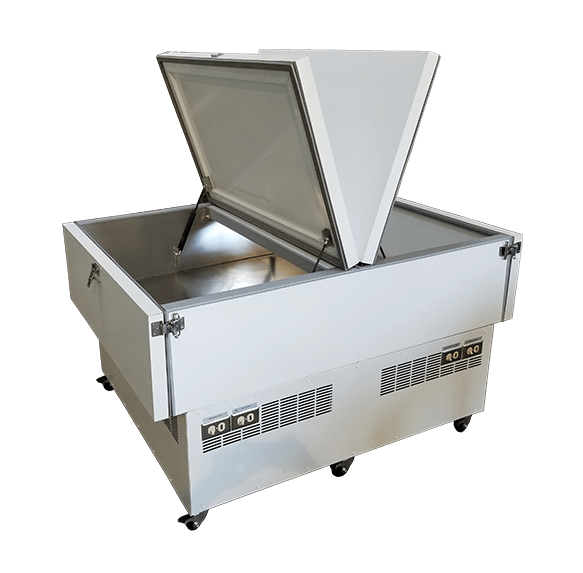

IBM600 Ice Block Maker

Description

Uses dual chambers to cool and freeze water to form blocks of ice.

Can create:

  • two large 300 lb. blocks of ice.
  • 67 11-lb. blocks of ice using the 11-lb. Block Compartments.
  • 69 blocks of ice using the Snow Cone Block Compartments.

Dimensions

Uncrated Size: 48″ long x 65″ wide x 38.5″ high (includes casters)
Uncrated Weight: Approximately 590 lbs.
Crated Size: 57” long x 76″ wide x 50″ high
Crated Weight: Approximately 650 lbs.

Construction

Aluminum interior

White galvanized exterior

Electrical

UL-approved electrical components used

208/230 Volt
Single Phase
60 Hz

Amp Draw: 11.6 per system (2 systems used)
Minimum (2) 15 amp circuits OR (1) 30 amp circuit required

Options

Other voltages available upon request.

Pair with an Ice-Max Water Chiller to significantly reduce freezing times.

Use our Ice-Max Ice Block Compartments to create many blocks of ice for various purposes, such as snow cone machines.

Store newly created ice blocks inside of our Ice-Max Ice Block Storage Locker.

Products should be installed in compliance with NEC (National Electric Code), OSHA, and other regulatory agencies. All specifications are subject to change without notice.
