PTWC

Description

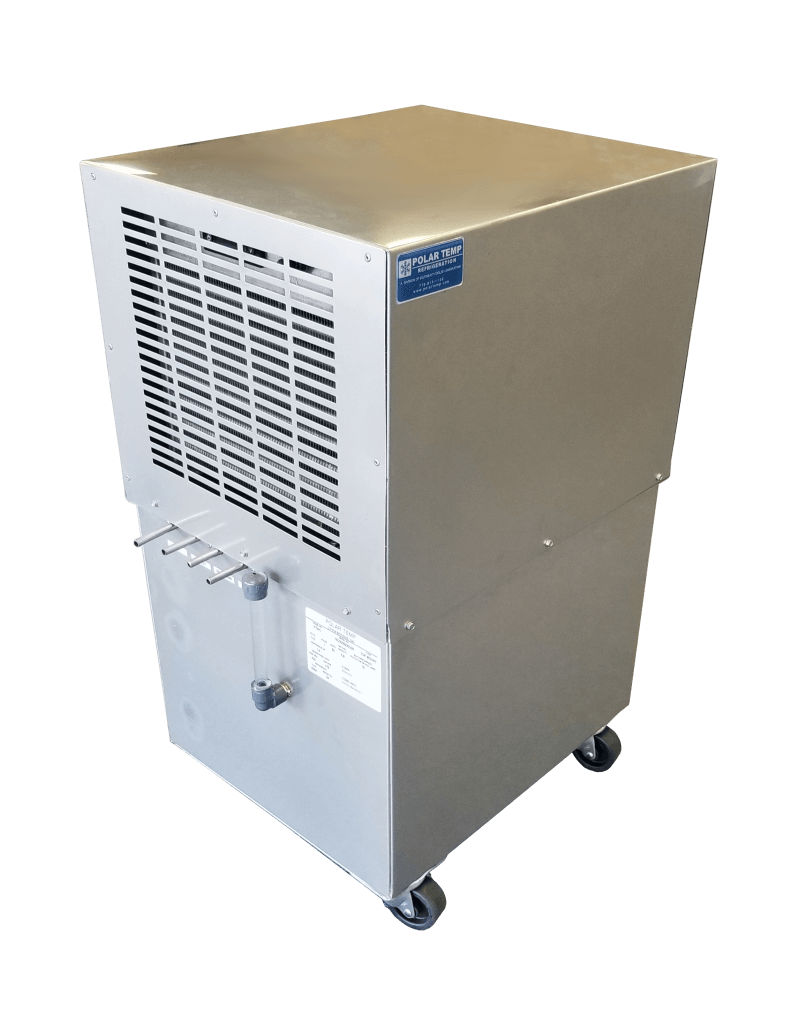

The Polar Temp Water Chiller is designed to chill water and reduce it’s temperature down to a set point. The PTWC is an auxiliary product to the Ice Block Maker product line. Chilling the water prior to being frozen inside of the IBM will significantly reduce the amount of time required to completely freeze a block of ice.

The PTWC can also be used as a standalone product to help maintain a steady supply of cold water. Other uses include cooling for industrial machinery.

Dimensions

19.5″ long x 15.5″ wide x 30.5″ high

Water Circulation

Chiller designed to drop water temperature from 70°F to approximately 51°F in one minute at a flow rate of 1.6 GPM through 100 feet of stainless-steel tubing.

Construction

22-gauge robust stainless steel exterior housing
18-gauge robust stainless steel interior housing
Robust aluminum angle frame (1.5″ x 1.5″ x 3/16″)
3″ casters
Robust 1/4 HP refrigeration system

Electrical

115V/60Hz/1Ph
5.8 amps/15-amp circuit

Products should be installed in compliance with NEC (National Electric Code), OSHA, and other regulatory agencies. All specifications are subject to change without notice.

ICE-MAX

1520 Westfork Drive Lithia Springs, Georgia 30122

800-241-9778
