IBMWC

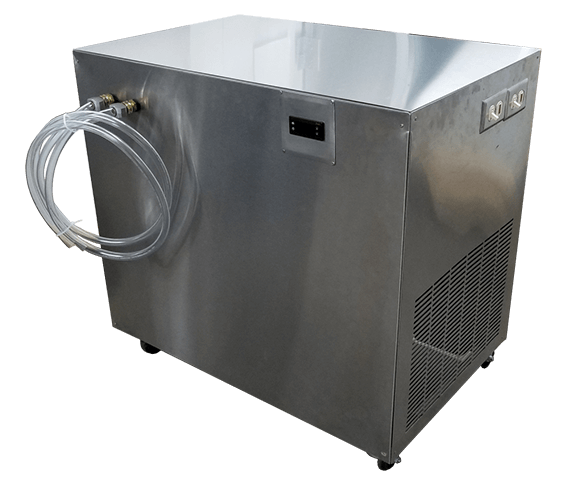

The Ice Max Water Chiller is designed to quickly reduce water temperature. By chilling water to just above freezing before it enters the IBM, it significantly shortens the time needed to freeze ice blocks completely. Compact yet powerful, this water chiller measures 30″ long by 36″ wide by 34.5″ high and can recirculate and chill up to 37.5 gallons of water—from 100 °F down to 40 °F—in just over three hours.
Built with a durable 22-gauge stainless steel exterior and a sturdy aluminum frame, the Water Chiller is made to withstand heavy use. It operates on 120V/60Hz/1Ph power with a 7.2-amp draw on a 15-amp circuit, using UL-approved electrical components. As with all Ice Max products, installation should follow NEC, OSHA, and other regulatory requirements. Please take a look at all our other water conditioning products here, or contact the Ice Max team with questions online.
Description
It is an auxiliary product to the Ice Block Maker product line. Chilling the water prior to being frozen inside of the IBM will significantly reduce the amount of time required to completely freeze a block of ice. The temperature of the water is brought down to just above the freezing point. The chilled water is then fed into the IBM to complete the freezing process.
Dimensions
Water Circulation
Construction
Robust aluminum angle frame
1.5″ x 1.5″ x 3/16″
Electrical
7.2 amps/15-amp circuit
Products should be installed in compliance with NEC (National Electric Code), OSHA, and other regulatory agencies. All specifications are subject to change without notice.
